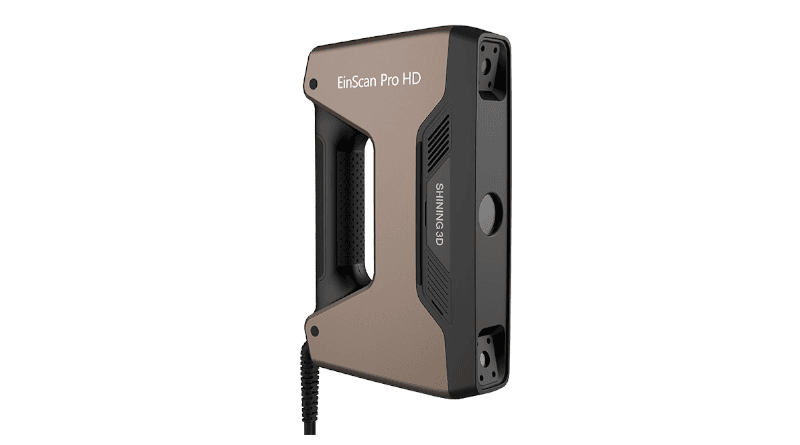

EinScan Pro HD - the new scanner from Shining 3D

EinScan Pro HD include a new lighting projection hardware and software algorithm. Thanks to it’s capable to scan a wider range of objects of dark or black colour and casting metal surface, enriching the capability for 3D scanning of materials. By adopting a new structure light projection modular, the stripe pattern scanning which was traditionally used in Fixed Scan Mode is now utilized to Handheld HD Scan Mode. It allows to set the minimum scanning distance to 0.2mm for handheld scanning mode.

In Fixed Scan Mode, EinScan Pro HD delivers cloud with accuracy of 0.04mm, with speed of 1 500 000 pts/sec and 30 frames/sec, while the point distance is 0.25mm – 0.3mm. In the Handheld Scan Mode the accuracy is in range of 0.045mm + 0.3mm/m (HD mode) to 0.1mm + 0.3mm/m (fast scanning). In this mode the scanning speed is 3 000 000 pts/sec and 10 frames/sec, while the point distance is 0.2mm – 0.3mm. The maximum working distance is 510mm. EinScan Pro HD have the same (1,13kg) and dimensions as the other EinScan Pro scanners.

Together with the scanners Shining 3D offers own ExScan Pro software or Solid Edge SHINING 3D Edition.

Source: https://www.einscan.com
